Name: AC Infinity Air Filter Box with High Efficacy Filter, 10-Inch
SKU: 660231

Description

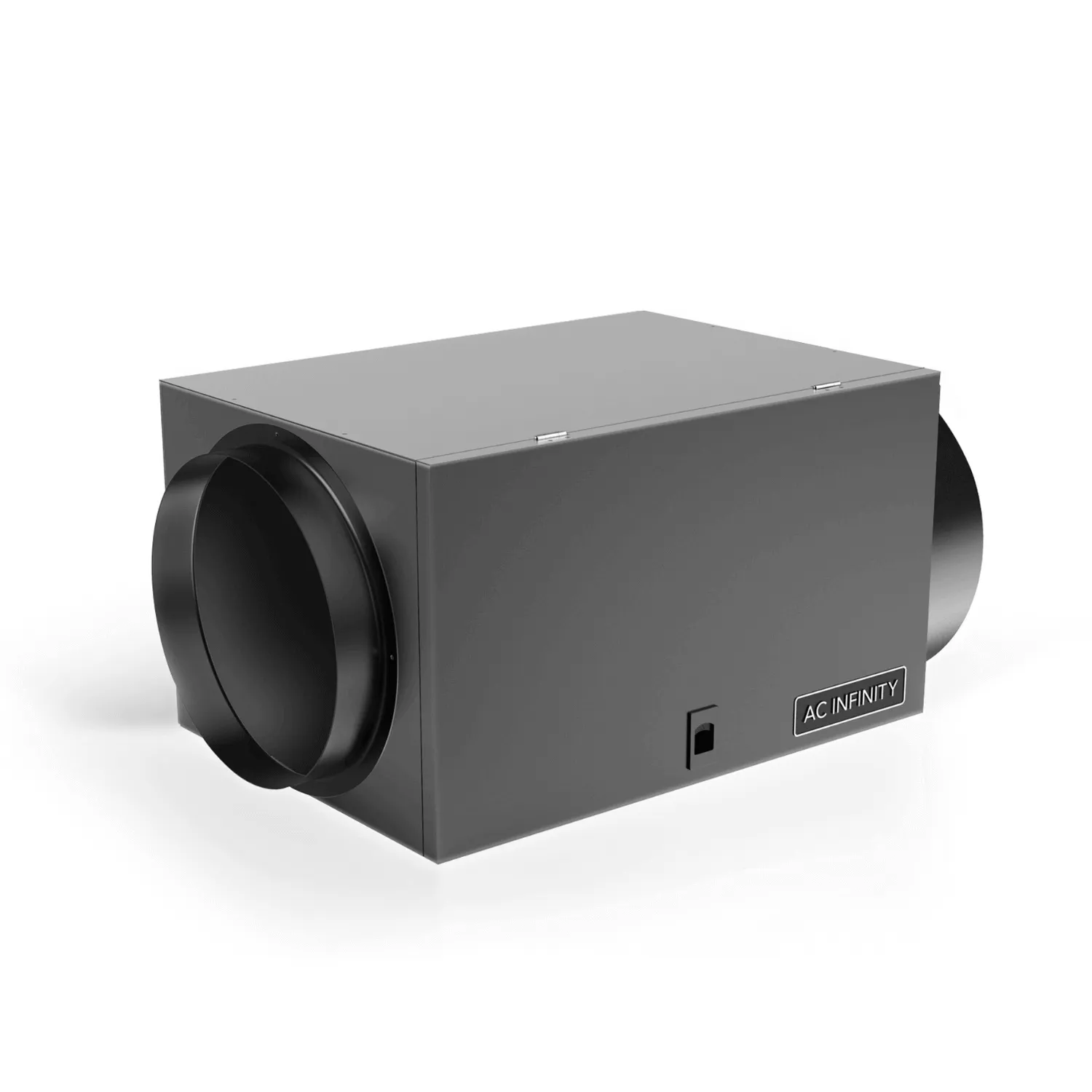

Duct Filter Box: This duct filter box is designed for use with inline fans to circulate fresh air while blocking dust and odors. It is built with 1mm thick cold-rolled steel and aluminum duct flanges, making it capable of withstanding extreme weather conditions. The slide lock door allows for easy access to the inner chamber, and the soft neoprene layer creates a dust-free seal. It includes a standard high efficacy filter that effectively traps particles such as dust, dirt, lint, and odor. The dimensions of the box are 22.51 x 11.57 x 13.93 inches, and it is compatible with 10-inch Inline fans and can operate up to a maximum of 2400 CFM. It accepts 14 x 20 x 1-inch filters.

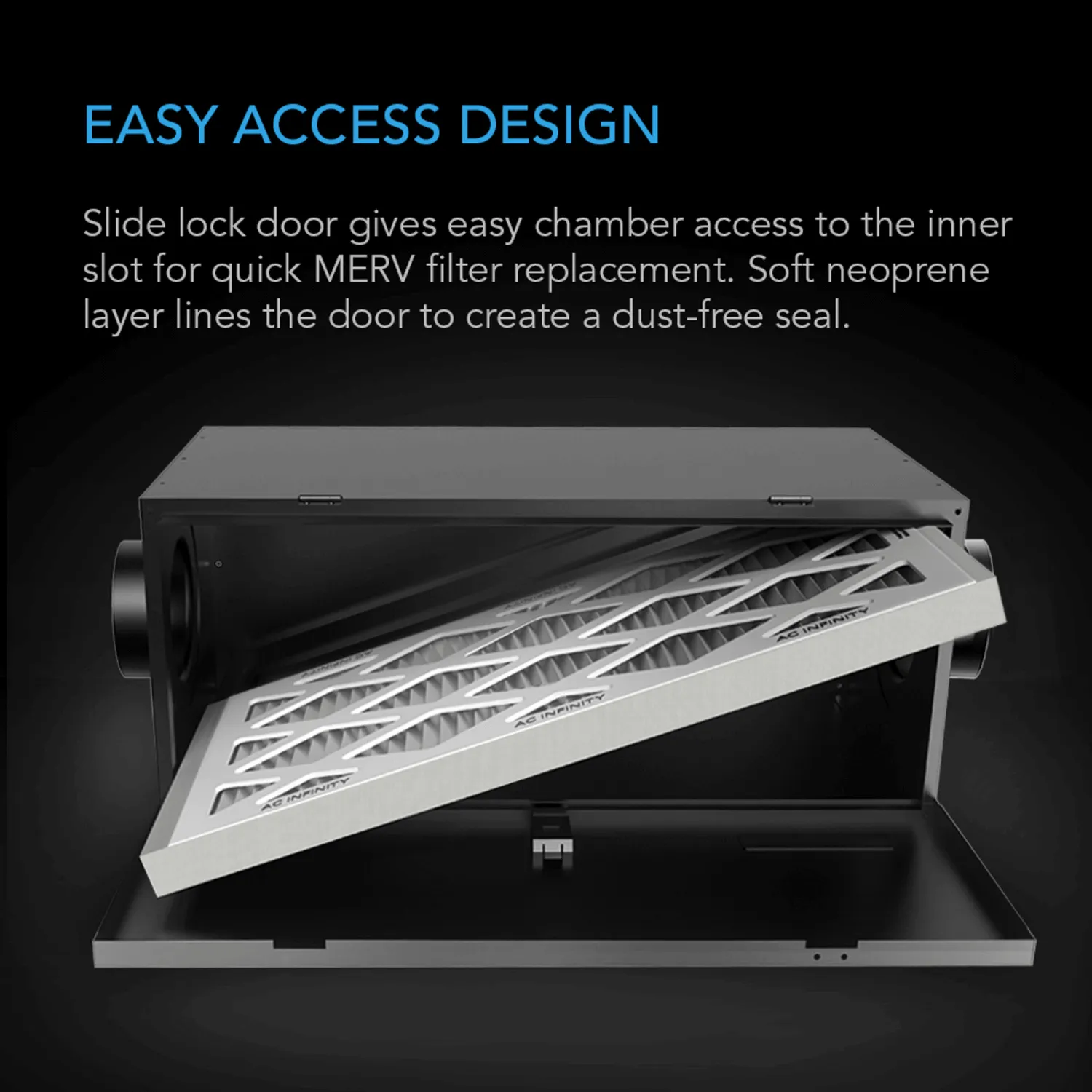

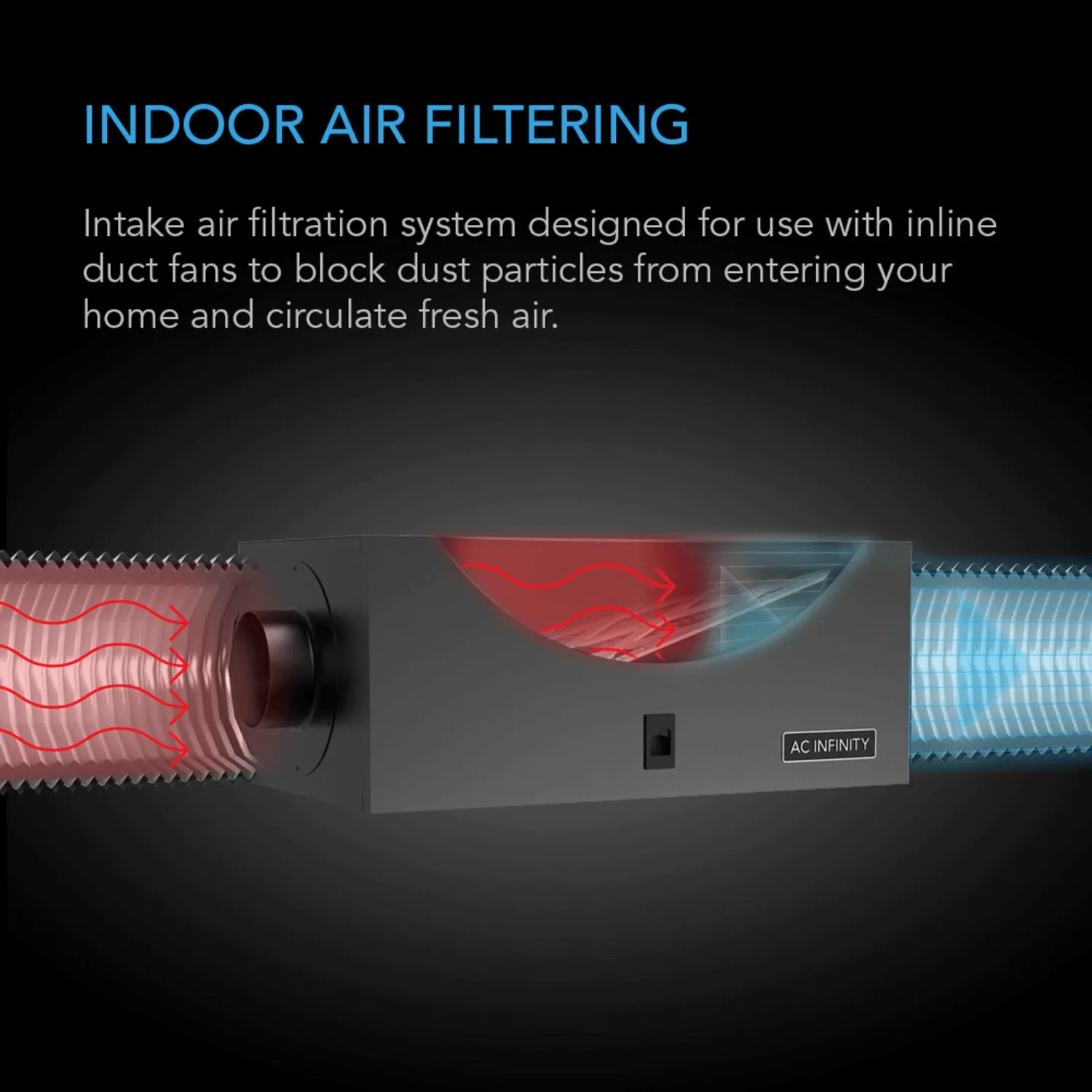

Product Description: A whole-house air filtration system designed for use with inline duct fans, such as the CLOUDLINE Series, to circulate fresh air while blocking particles like dust and dirt from entering your home in intake applications. Each air filter box is built using 1mm thick cold-rolled steel and finished with a matte black powder coating. This sturdy build, combined with aluminum duct flanges, is capable of withstanding inclement weather conditions. The low-maintenance design features a hinge-sealed door equipped with a slide lock that provides easy access to the inner chamber. The door is lined with a soft neoprene layer that keeps the filter in place and prevents any dust from seeping inside.

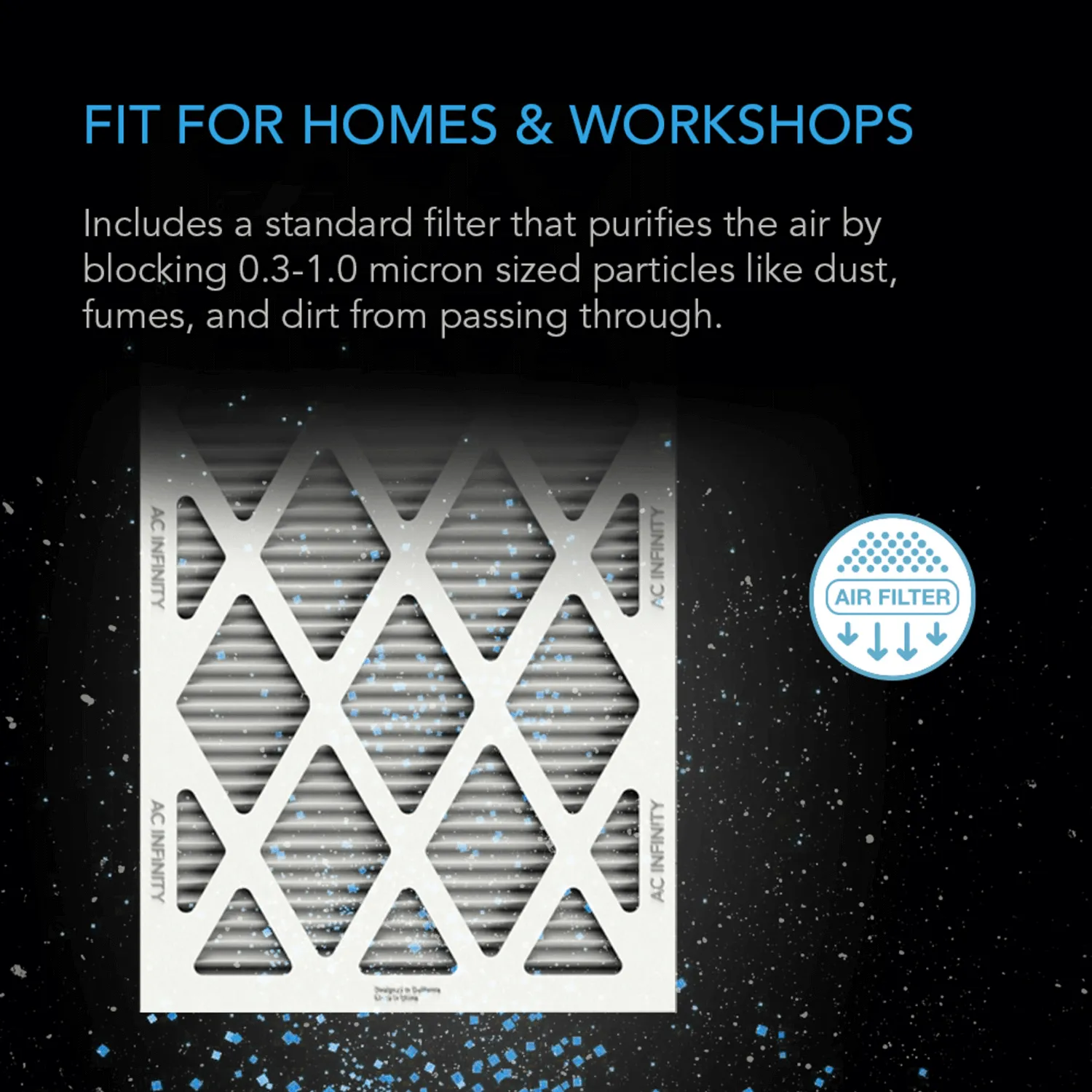

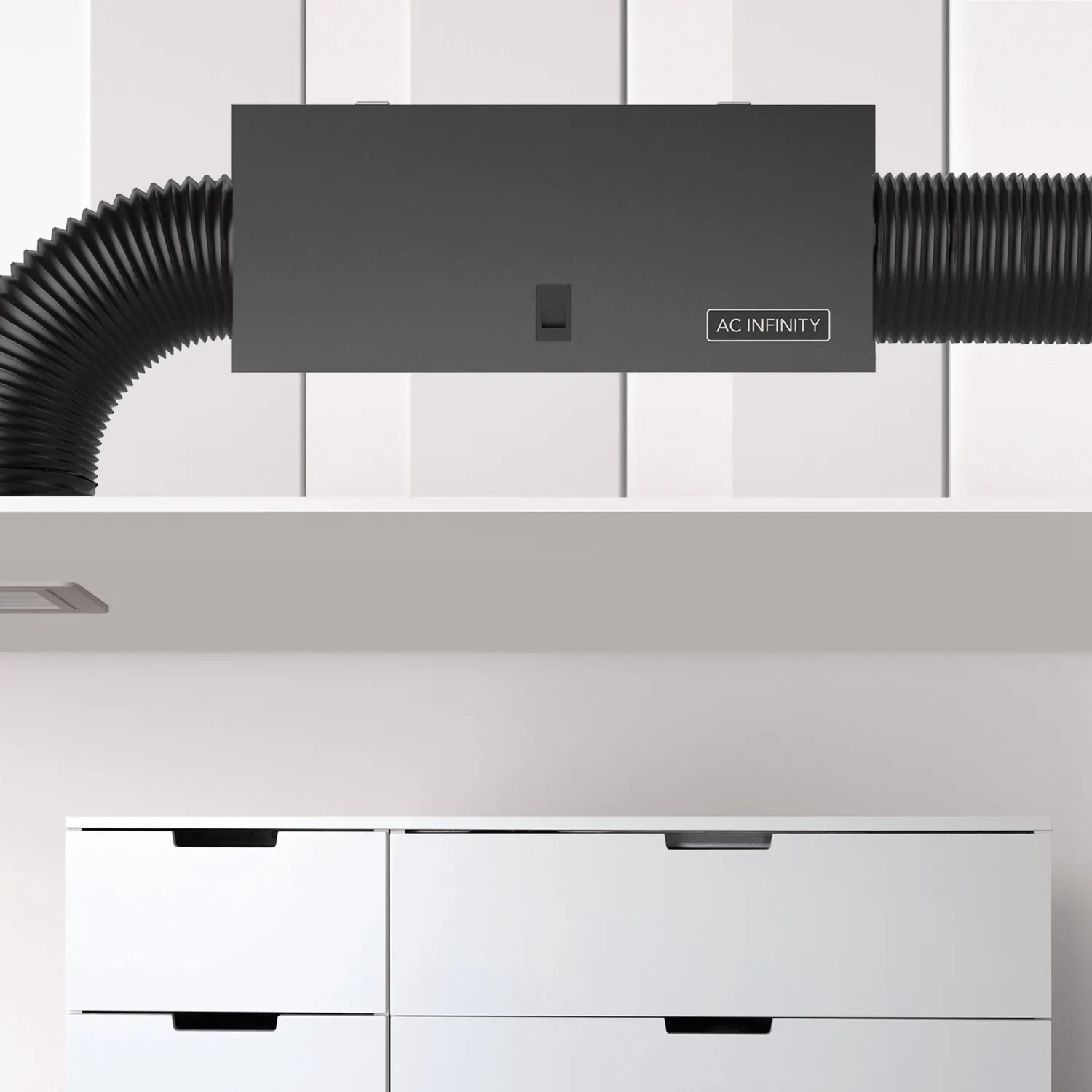

Applications: Each air filter box accepts standard MERV filter replacements that slide easily into the inner chamber’s filter slot. It comes included with a high-efficacy pleated air filter capable of trapping 0.3-1.0 micron-sized particles including dust, dirt, lint, and odor. The duct flanges fit with matching sized 10-inch inline fans and streamline installation to create high-efficiency filtration in HVAC and grow applications. Attaching the air filter box at the start of your ductwork will dramatically reduce suspended particles in the air inside your home. For maximum filtration, it's recommended to use it with a high static pressure fan like the CLOUDLINE Series of duct fans.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: Air Filter Box 10""

Product Model: AC-AFB10

UPC Code: 819137021723

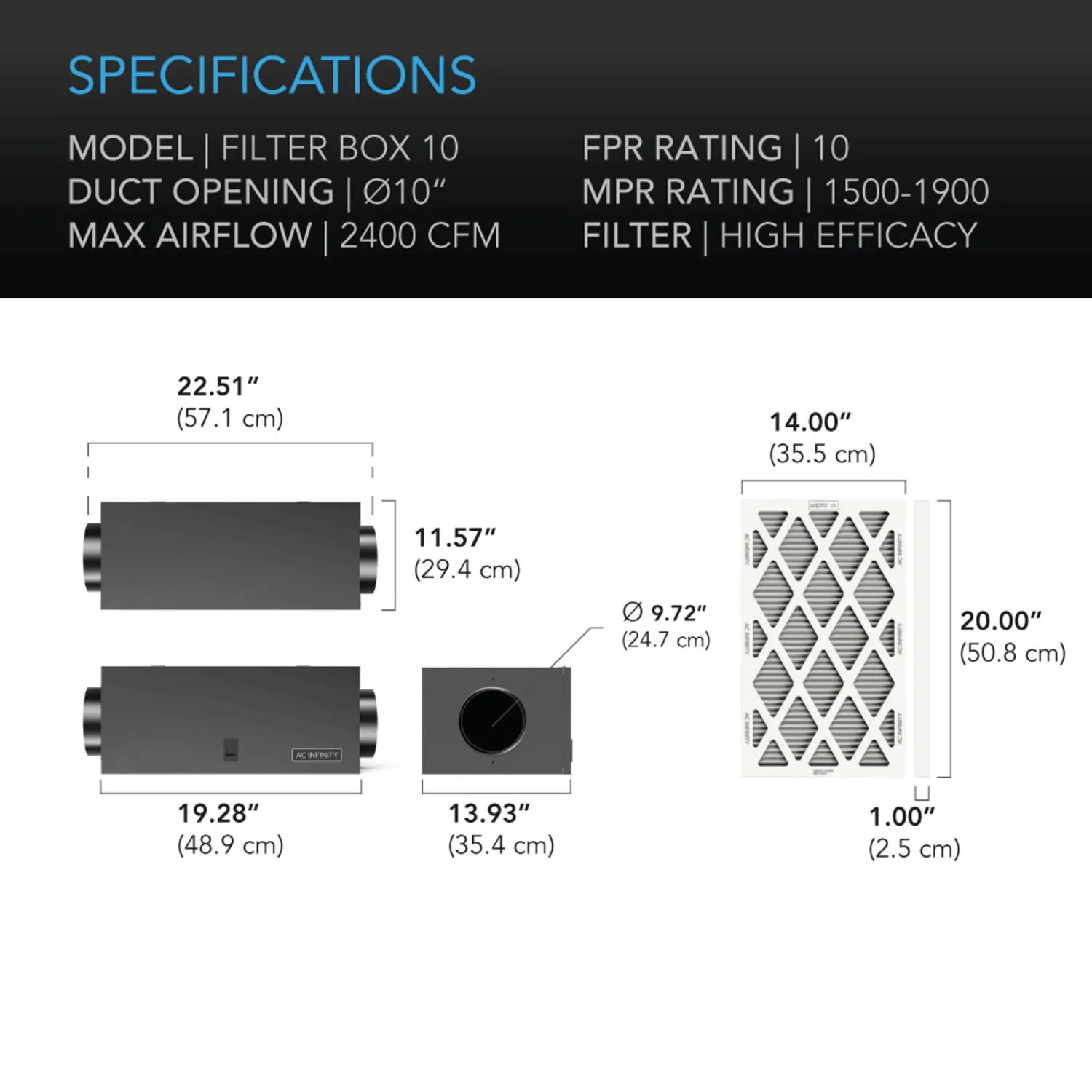

Product and Mounting Dimensions

Duct Opening Size: 9.72 inches

Total Dimensions: 22.51 x 11.57 x 13.93 inches

Flange Length: 3.23 inches

Product Performance and Technical Specs

Box Material: Steel

Flange Material: Aluminum

Finish: Matte Black

Filter Size: Accepts 14 x 20 x 1 inches

Minimum Airflow Range: 532-798 CFM

Maximum Airflow: 2400 CFM

Compatible Fan Models: CLOUDLINE S10, CLOUDLINE T10

Data Sheet

Download the Product Manual:
